MPO patchpanel

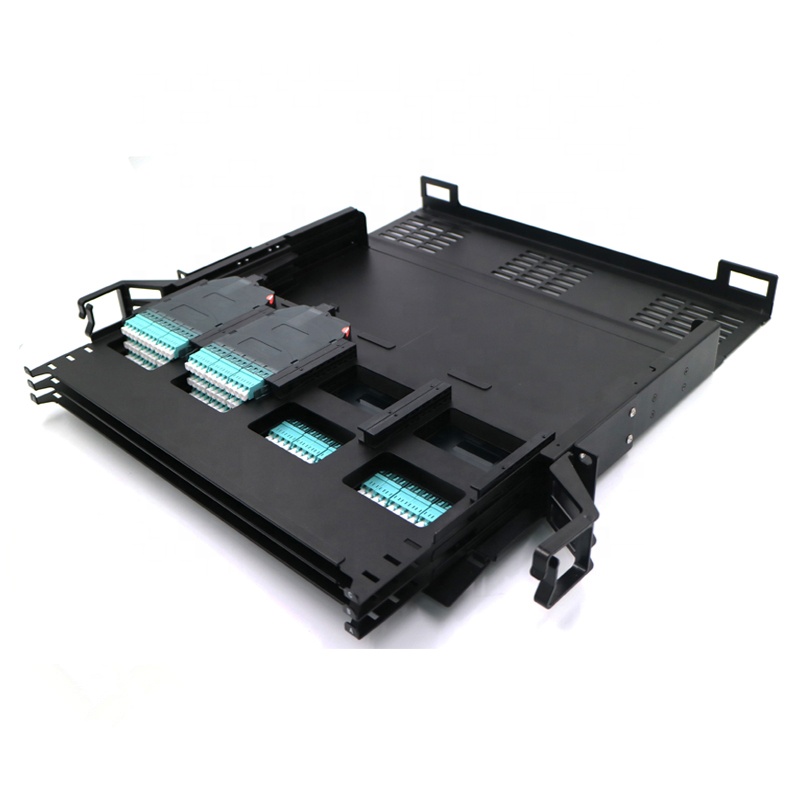

1U Patch  Panel Loaded with MPO MTP Cassettes

MTP/MPO Cassette Modules provide secure transition between MTP/MPO and LC or SC discrete connectors. They are used to interconnect MTP/MPO backbones with LC or SC patching.

Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. Cassettes can be mounted in 1U or 3U 19” multislot chassis.

MTP/MPO Cassettes contain factory controlled and tested MTP/MPO-LC fanouts to deliver optical performance and reliability. Low loss MTP/MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.


FEATURES
Finishing: powder coated
Fits into 19 inch installations
Max capacity up to 144 fiber for 1U
Sliding tray design
Easy to operate and maintain
